CyberScan
CyberScan是一个开源的网络取证渗透测试工具包，可以分析IP，包括（纬度，经度，区域，国家……）的数据包，解码，扫描端口，ping和地理定位。
CyberScan支持系统
- Windows XP/7/8/8.1/10
- GNU/Linux
- MacOSX
CyberScan安装
|
1 2 3 |
git clone https://github.com/medbenali/CyberScan.git cd CyberScan/ python CyberScan.py -v |
CyberScan支持Python 2.6.x -2.7.x
CyberScan模块用法
CyberScan能够发送和捕获多个协议的数据包，伪造并对它们进行解码以用于大多数网络任务，如扫描，ping，探测和攻击。
帮助选项
|
1 |
CyberScan -h |
Pinging 网络
CyberScan支持使用多种协议执行ping操作，在本地以太网上发现主机的最快方法是使用ARP：
ARP Ping
|
1 2 3 4 5 6 |
$ CyberScan -s 192.168.1.0/24 -p arp [*] Starting Ping ARP for 192.168.1.0/24 Begin emission: Finished to send 256 packets. Received 0 packets, got 0 answers, remaining 256 packets |
ICMP Ping
在其他情况下，我们可以使用ICMP ping：
|
1 2 3 4 5 6 |
$ CyberScan -s 192.168.1.1-254 -p icmp [*] Starting Ping ARP for 192.168.1.0/24 Begin emission: Finished to send 256 packets. Received 0 packets, got 0 answers, remaining 256 packets |
TCP Ping
在ICMP回应请求被阻止的情况下，我们仍然可以使用TCP：
|
1 |
$ CyberScan -s 192.168.1.1-254 -p tcp -d 80 |
UDP Ping
甚至UDP（从实时主机产生ICMP端口不可达错误）。我们可以选择任何最有可能关闭的端口，例如端口0：
|
1 |
$ CyberScan -s 192.168.*.1-10 -p udp |
网络扫描
端口扫描器
在CyberSan Tool中，我们可以指定/不指定开始和结束端口进行扫描
|
1 2 3 4 5 6 7 8 9 10 11 12 13 |
$ CyberScan -s 192.168.1.1 -p scan -d 1 -t 100 WARNING: No route found for IPv6 destination :: (no default route?) [*] CyberScan Port Scanner [*] Scanning 192.168.1.1 From Port 1 To 100: [*] Starting CyberScan 1.01 at 2017-07-14 14:00 CEST [*] Scan In Progress ... [*] Connecting To Port : 100 [*] Scanning Completed at 2017-07-14 14:00 CEST [*] CyberScan done: 1IP address (1host up) scanned in 0.32 seconds [*] Open Ports: 23 TELNET: Open 53 DNS: Open 80 HTTP: Open |
|
1 2 3 4 5 6 7 8 9 10 11 12 |

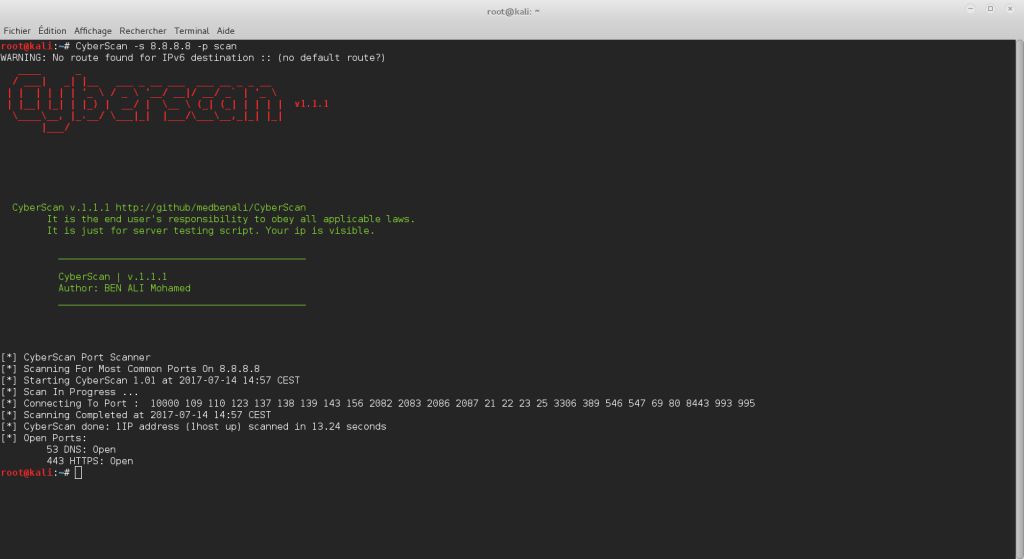

$ CyberScan -s 8.8.8.8 -p scan WARNING: No route found for IPv6 destination :: (no default route?) [*] CyberScan Port Scanner [*] Scanning For Most Common Ports On 8.8.8.8 [*] Starting CyberScan 1.01 at 2017-07-14 14:03 CEST [*] Scan In Progress ... [*] Connecting To Port : 10000 109 110 123 137 138 139 143 156 2082 2083 2086 2087 21 22 23 25 3306 389 546 547 69 80 8443 993 995 [*] Scanning Completed at 2017-07-14 14:03 CEST [*] CyberScan done: 1IP address (1host up) scanned in 13.11 seconds [*] Open Ports: 53 DNS: Open 443 HTTPS: Open |
地理定位 IP
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
$ CyberScan -s 72.229.28.185 -p geoip WARNING: No route found for IPv6 destination :: (no default route?) [*] IP Address: 72.229.28.185 [*] City: New York [*] Region Code: NY [*] Area Code: 212 [*] Time Zone: America/New_York [*] Dma Code: 501 [*] Metro Code: New York, NY [*] Latitude: 40.7605 [*] Longitude: -73.9933 [*] Zip Code: 10036 [*] Country Name: United States [*] Country Code: US [*] Country Code3: USA [*] Continent: NA |
分析和解码数据包
Cyberscan可以分析PCAP文件提取和解码以太网、IP、TCP、ICMP、UDP包头。
以太网包头
|
1 2 3 4 5 6 7 8 |
$ CyberScan -f test.pcap -p eth WARNING: No route found for IPv6 destination :: (no default route?) ---------------------------------------- [*] Packet : 1 [+] ### [ Ethernet ] ### [*] Mac Destination : 00:1f:f3:3c:e1:13 [*] Mac Source : f8:1e:df:e5:84:3a [*] Ethernet Type : 2048 |
IP 包头
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 |
$ CyberScan -f test.pcap -p ip WARNING: No route found for IPv6 destination :: (no default route?) ---------------------------------------- [*] Packet : 1 [+] ###[ IP ] ### [*] IP Source : 172.16.11.12 [*] IP Destination : 74.125.19.17 [*] IP Version : 4 [*] IP Ihl : 5 [*] IP Tos : 0 [*] IP Len : 79 [*] IP Id : 56915 [*] IP Flags : 2 [*] IP Frag : 0 [*] IP Ttl : 64 [*] IP Protocol : 6 [*] IP Chksum : 18347 [*] IP Options : [] [*] IP Dump : 0000 45 00 00 4F DE 53 40 00 40 06 47 AB AC 10 0B 0C E..O.S@.@.G..... 0010 4A 7D 13 11 FC 35 01 BB C6 D9 14 D0 C5 1E 2D BF J}...5........-. 0020 80 18 FF FF CB 8C 00 00 01 01 08 0A 1A 7D 84 2C .............}., 0030 37 C5 58 B0 15 03 01 00 16 43 1A 88 1E FA 7A BC 7.X......C....z. 0040 22 6E E6 32 7A 53 47 00 A7 5D CC 64 EA 8E 92 "n.2zSG..].d... |
TCP 包头
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 |
$ CyberScan -f test.pcap -p tcp WARNING: No route found for IPv6 destination :: (no default route?) ---------------------------------------- [*] Packet : 1 [+] ###[ TCP ] ### [*] TCP Source Port : 64565 [*] TCP Destination Port : 443 [*] TCP Seq : 3336115408 [*] TCP Ack : 3307089343 [*] TCP Dataofs : 8 [*] TCP Reserved : 0 [*] TCP Flags : 24 [*] TCP Window : 65535 [*] TCP Chksum : 52108 [*] TCP Urgptr : 0 [*] TCP Options : [('NOP', None), ('NOP', None), ('Timestamp', (444433452, 935680176))] [*] TCP Dump : 0000 FC 35 01 BB C6 D9 14 D0 C5 1E 2D BF 80 18 FF FF .5........-..... 0010 CB 8C 00 00 01 01 08 0A 1A 7D 84 2C 37 C5 58 B0 .........}.,7.X. |
UDP 包头
|
1 2 3 4 5 6 7 8 9 10 11 12 13 |
$ CyberScan -f test.pcap -p udp WARNING: No route found for IPv6 destination :: (no default route?) ---------------------------------------- [*] Packet : 1 [+] ###[ UDP ] ### [*] UDP Source Port : 54639 [*] UDP Destination Port : 53 [*] UDP Len : 47 [*] UDP Chksum : 30084 [*] UDP Dump : 0000 D5 6F 00 35 00 2F 75 84 13 A2 01 00 00 01 00 00 .o.5./u......... 0010 00 00 00 00 04 65 38 37 32 01 67 0A 61 6B 61 6D .....e872.g.akam 0020 61 69 65 64 67 65 03 6E 65 74 00 00 01 00 01 aiedge.net..... |
ICMP 包头
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
$ CyberScan -f test.pcap -p icmp WARNING: No route found for IPv6 destination :: (no default route?) ---------------------------------------- [*] Packet : 1 [+] ###[ ICMP ] ### [*] ICMP Type : 3 [*] ICMP Code : 3 [*] ICMP Chksum : 5296 [*] ICMP Id : None [*] ICMP Seq : None [*] ICMP Dump : 0000 03 03 14 B0 00 00 00 00 45 00 00 43 C1 80 00 00 ........E..C.... 0010 40 11 4A FC AC 10 0B 01 AC 10 0B 0C 00 35 E7 E8 @.J..........5.. 0020 00 2F 00 00 ./.. |
